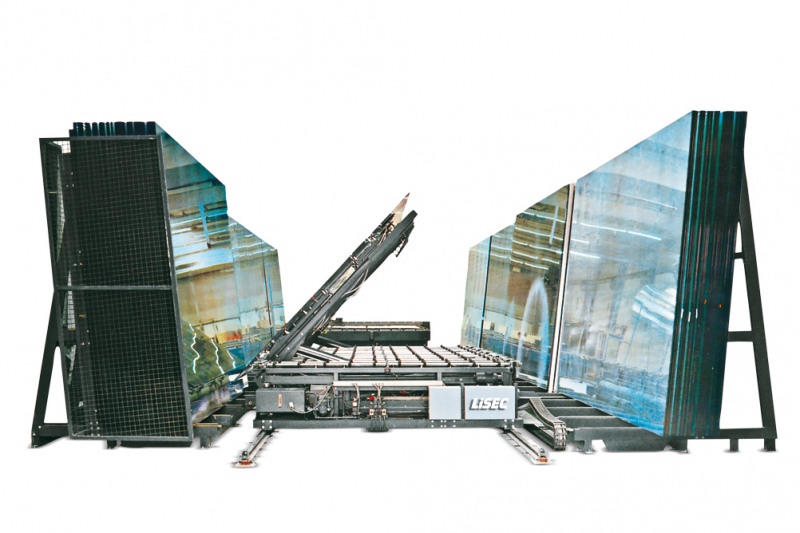

ATH/D-ATH/FD - doublesided loading station

Double-sided glas loading machine for taking glass sheets from storage racks whitcht are placed parallel on both sides. Immediately placed in a horizontal position for feed into cutting tables. Fully automatic operation. Hydraulic system for driving the station and suction frame. Linear movable construction with electronic drive control for taking the glass sheets fromm up 5 unloading positions located in line on both sides facing each other.

• Both jumbo sizes and split sizes can be handled:
  i.e. glass sheets max. 6000 x 3300 mm, min. 2500 x 1450 mm
• Special design for split sizes only:
  i.e. glass sheets max. 3800 x 2800 mm, min. 1200 x 2200 mm
